Cambium Networks

Cambium Networks is a leading provider of licensed and unlicensed wireless radio technology. ARMS provides solutions as required below 1 GHz and above 6 GHz for video, voice and data communications.

Cambium Networks PTP 820 Portfolio provides high capacity with lower power consumption and leading system gain across entire spectrum. The high service granularity enables network sharing and multiple services. FIPS 140-2 Validated.

cambium

Full Outdoor – PTP820S

  • Operates single RF band
cambium

Full Outdoor – PTP 820C

  • Operates single RF band
  • Lic Activate for 2nd Core

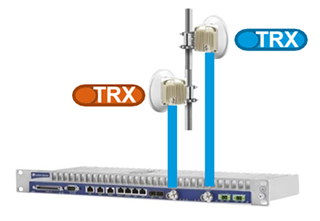

Split Mount – PTP820G+RFU-C

  • Supports two different RF bands
  • Ethernet +E1/T1

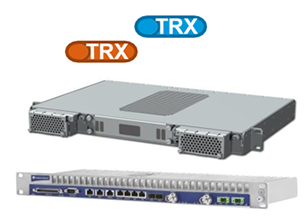

All Indoor – PTP820G+RFU-A

  • Supports two different RF bands
  • Ethernet +E1/T1
  • 35dB Tx
cambium

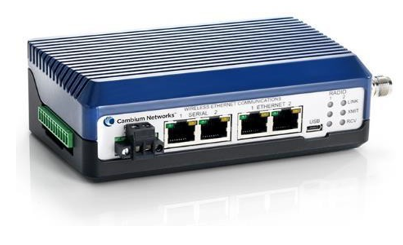

Cambium Networks cnReach™

  • 220, 450, 700, 900 MHz Narrow-Band Radio
  • 57 kbps – 4.4 Mbps
  • Licensed and unlicensed

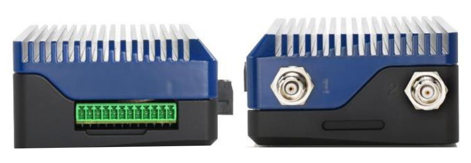

cnReach physical interfaces:

  • 2 x 10/100 Ethernet Interfaces standard (RJ-45)
  • 2 x Serial Interfaces RS-232/422/485 standard (RJ-45)
  • 8 GPIO ports available optionally on all cnReach products
  • Secure communications with AES128/256-bit encryption with password authentication
  • Highly reliable communications with access point synchronization and adaptive modulation
  • Single and dual radio configurations for advanced back-to-back relay and store-and-forward applications
